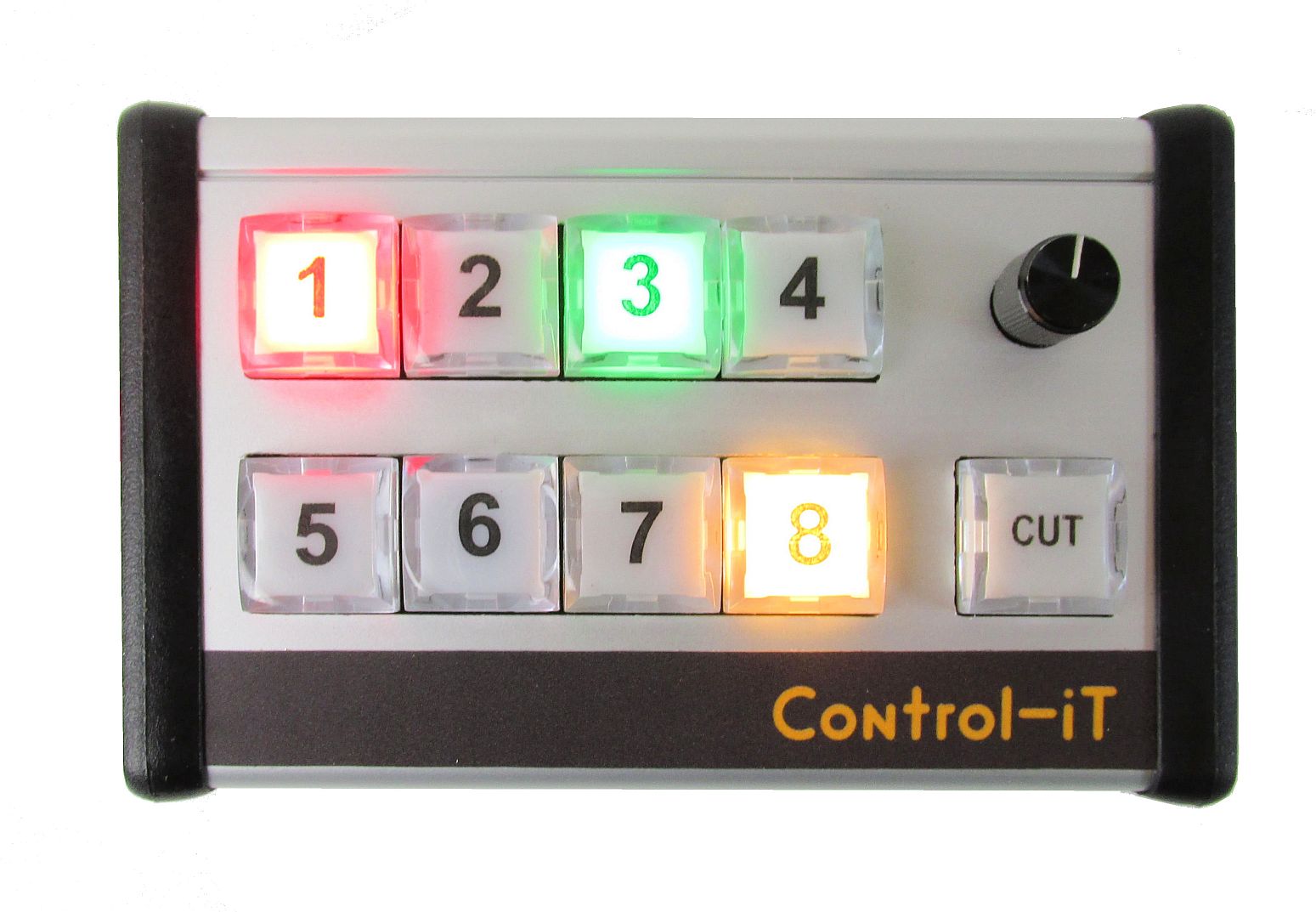

Control-iT  USB and RS422 universal controller

is a compact (126x80x45mm) controller with 8+1 illuminated broadcast buttons and a rotary controller.
It has a USB interface, an RS422 interface and GPIO  lines. The function of the controller is determined by the firmware, which can be changed by the user.

There are several ways to customize this unit to your needs:
  • By selecting a protocol - the number of supported protocols is growing

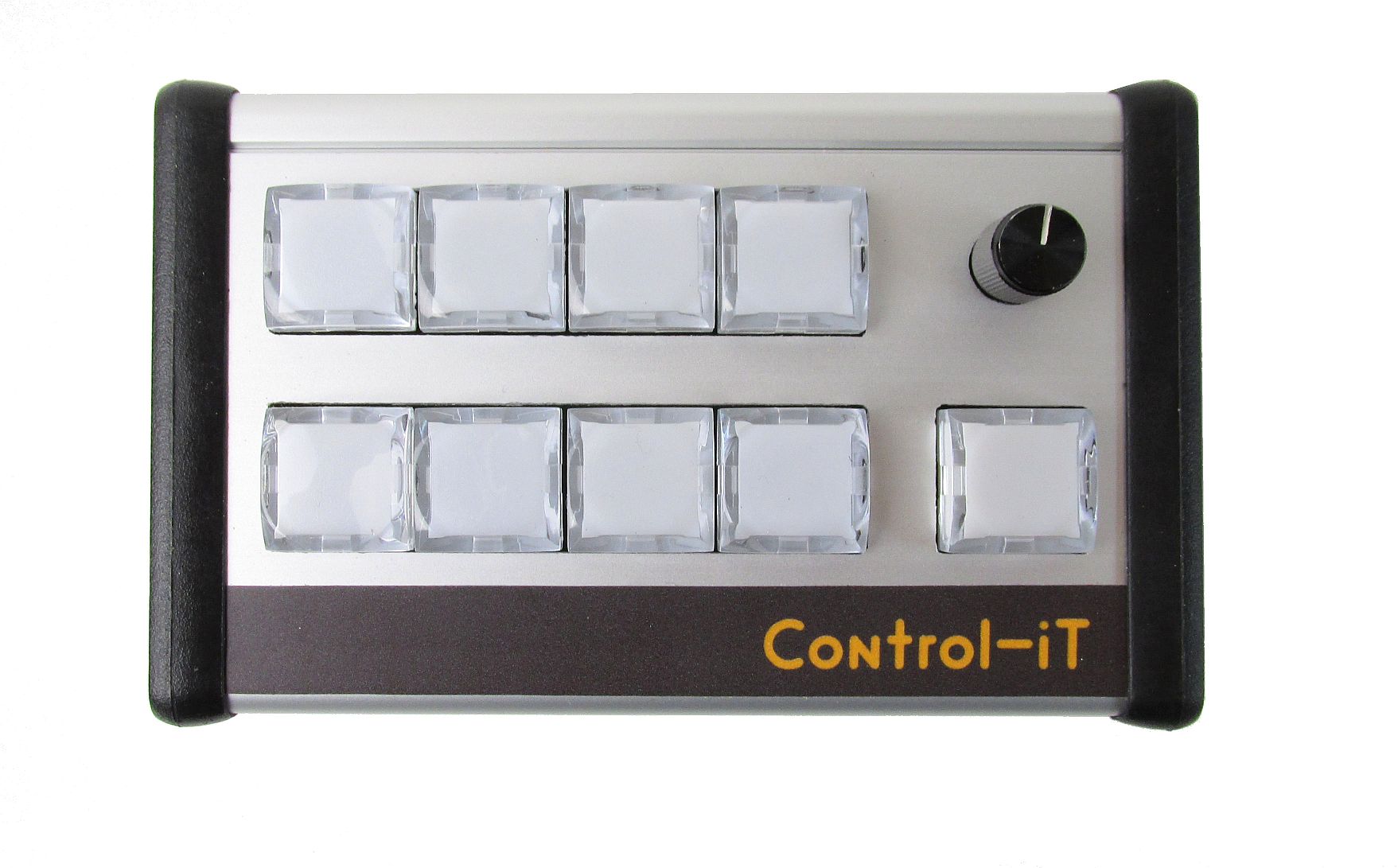

  • By changing the key inlays - use the legends that are included or make your own
  • By using the editor to generate your own command strings
  • By selecting an interface RS422, USB MIDI, USB keyboard, USB Serial, Infrared, Lanc, GPIO, ...
So far, the following protocols have been implemented:
  • Blackmagic ATEM switchers (GVG100 protocol) *
  • Blackmagic Videohub (Leitch protocol)
  • Blackmagic Hyperdeck (Sony p2 protocol)
  • vMix software videomixer (MIDI)
  • Pelco controller
  • USB keyboard
In the next few months, an editor will be released, that allows you to develop, test and 'burn' your own protocol/command strings.

The unit is powered by the USB-cable, or via an AC adapter

* Control-iT uses the RS422 port to control ATEM switchers, so the old ATEM Television Studio is not supported
