PTZ-lift

Universal telescopic column for cameras

A camera lift is used to create vertical camera movements. The lift can be used to achieve dramatic reveals or to add a sense of motion to an otherwise static shot.

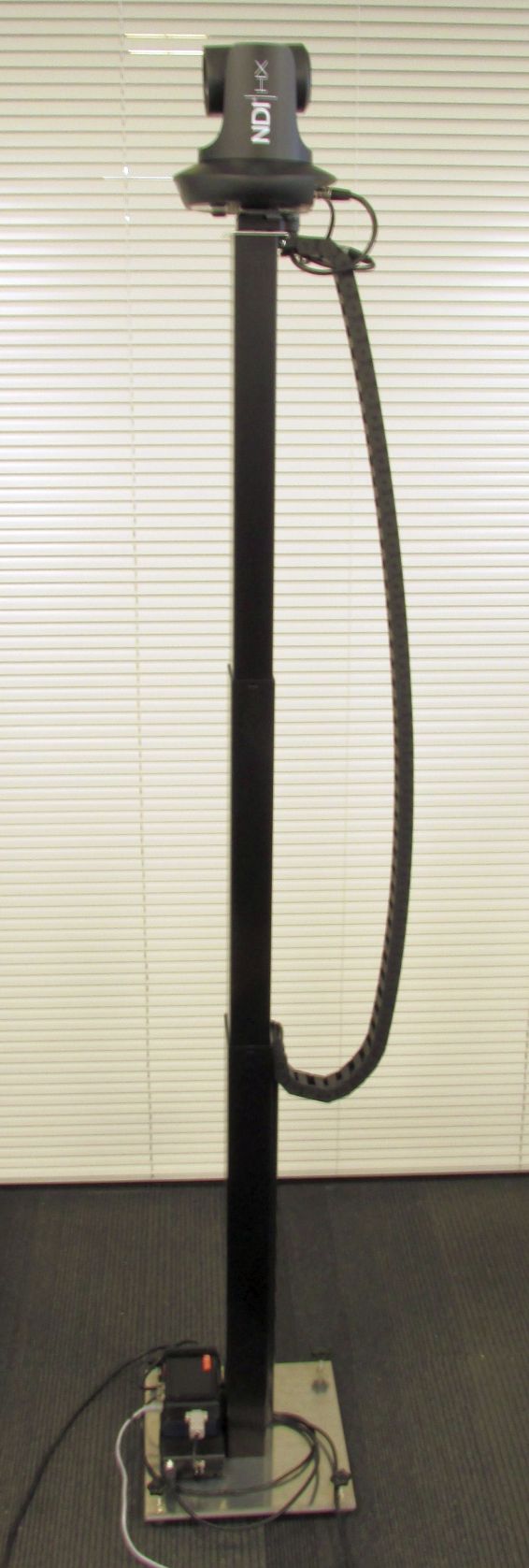

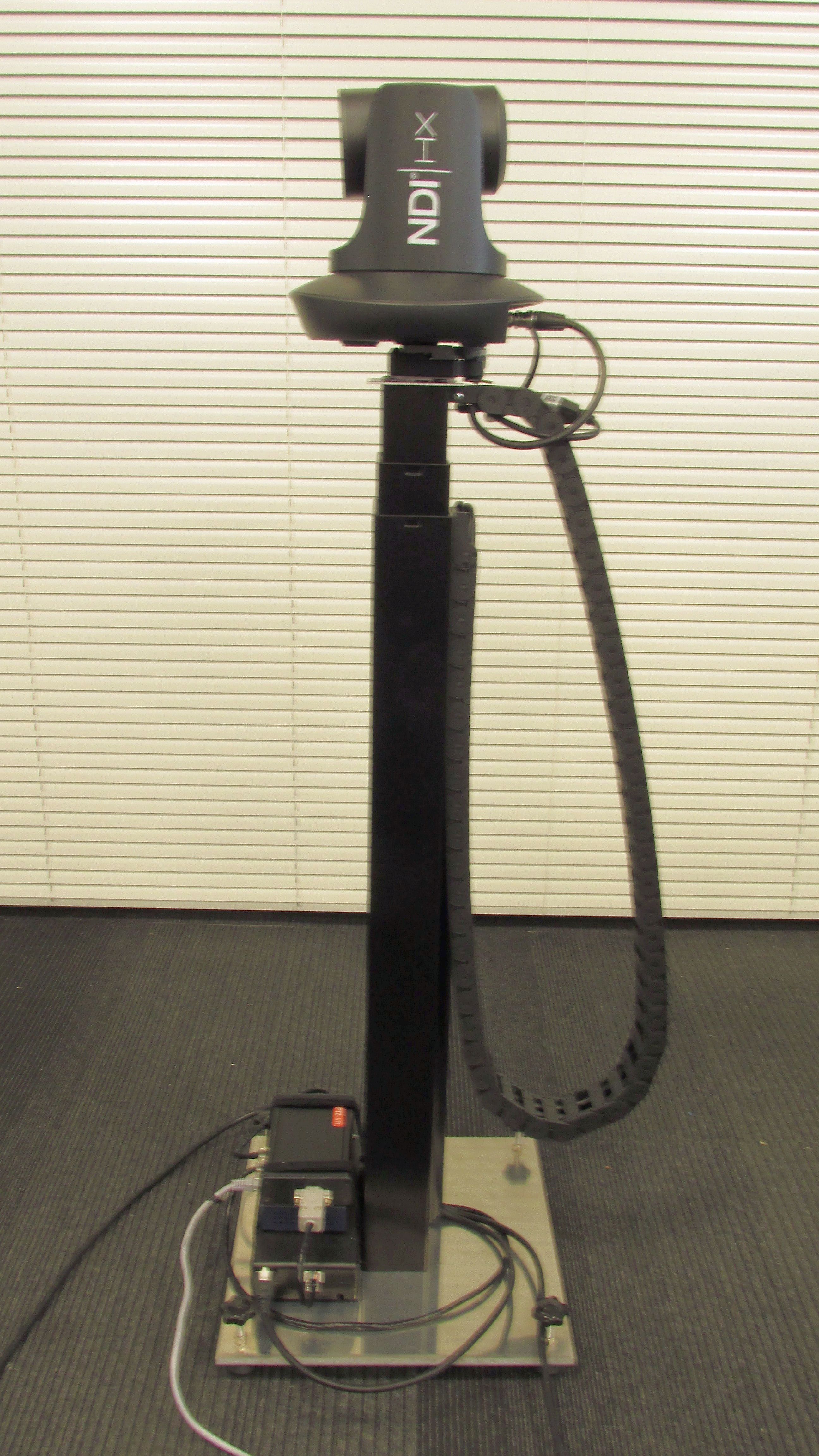

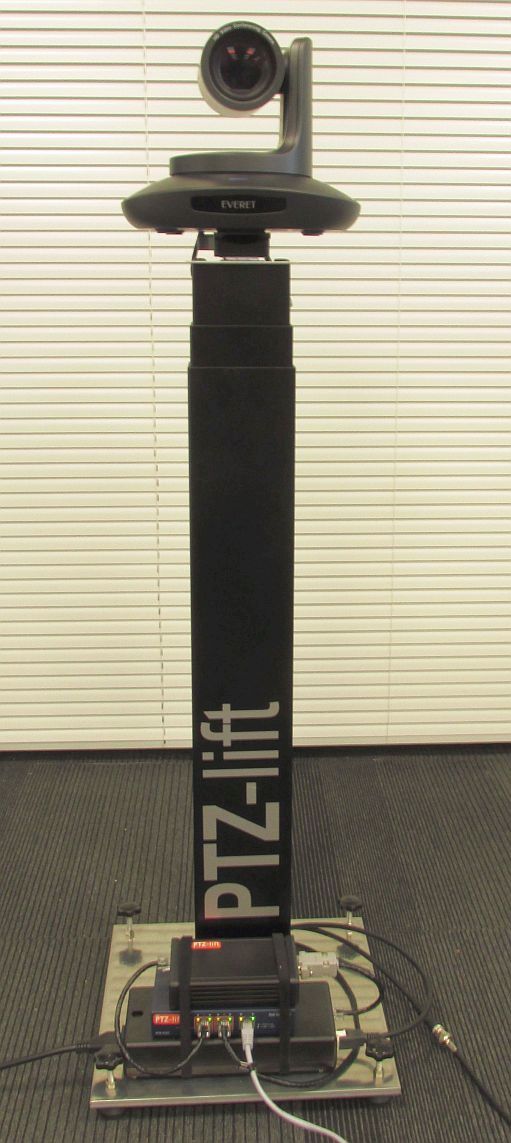

The PTZ-lift is a telescopic camera column, that ranges in height between 70 and 170cm. The lift is controlled over a network via Visca over IP protocol - ideal in a studio setup.
You can use any Visca IP controller, but when you choose PTZ-link it allows controlling the lift with a dual footswitch, while at the same time adjusting the PTZ camera with the joystick.


PTZ-LIFT

PTZ-LIFT


PTZ-LIFT

PTZ-LIFT


PTZ-lift

telescopic column for remote controlled cameras

- uses Visca or Pansonic camera protocol
- Control with any Visca controller, Panasonic controller or PTZ-link controller with footswitches
- PoE supply for camera and interface
- 230V ac column supply
- height 70-170cm, travel 100cm
- height 120-220cm with optional column extender
- network rj45
- weight 10kg, controller 1kg
- floorplate 30x30cm
- payload: 20kg max
- cost effective solution

package contents:
- PTZ-lift column on floorplate
- camera quick release plate
- multicable SDI, motor and UTP
- column power supply
- column Visca interface
- PoE splitter
- ac adapter 7.5V dc

MSRP € 1950,-

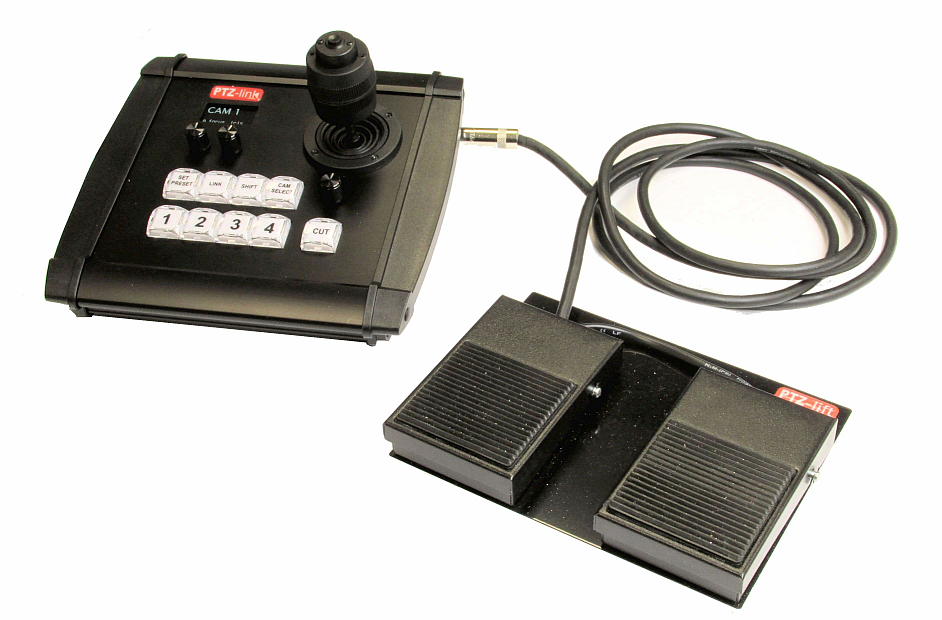

As above, with controller and footswitches:
- PTZ-link controller
- dual footswitch

MSRP € 2950,-


where to buy where to buy


Resources:

PTZ-lift nanual PTZ-lift manual
